The Extron TLP Pro 725T is a 7" Tabletop TouchLink Pro Touchpanel with many enhanced features. Extron redesigned this latest TouchLink Pro Touchpanel inside and out with a new, high-performance quad-core processor, eight times more memory, a higher resolution, 1024x600 capacitive touchscreen built with scratch and smudge-resistant Corning Gorilla Glass, and a distinctive enclosure with a sleek, gracefully-sweeping back. The TLP Pro 725T also features the convenience of PoE - Power over Ethernet, which allows it to receive power and communication over a single Ethernet cable. It is ideal for any environment requiring a stylish, tabletop touchpanel with a fully-customizable interface. The TLP Pro 725T works with any Extron IP Link Pro control processor and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable. All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

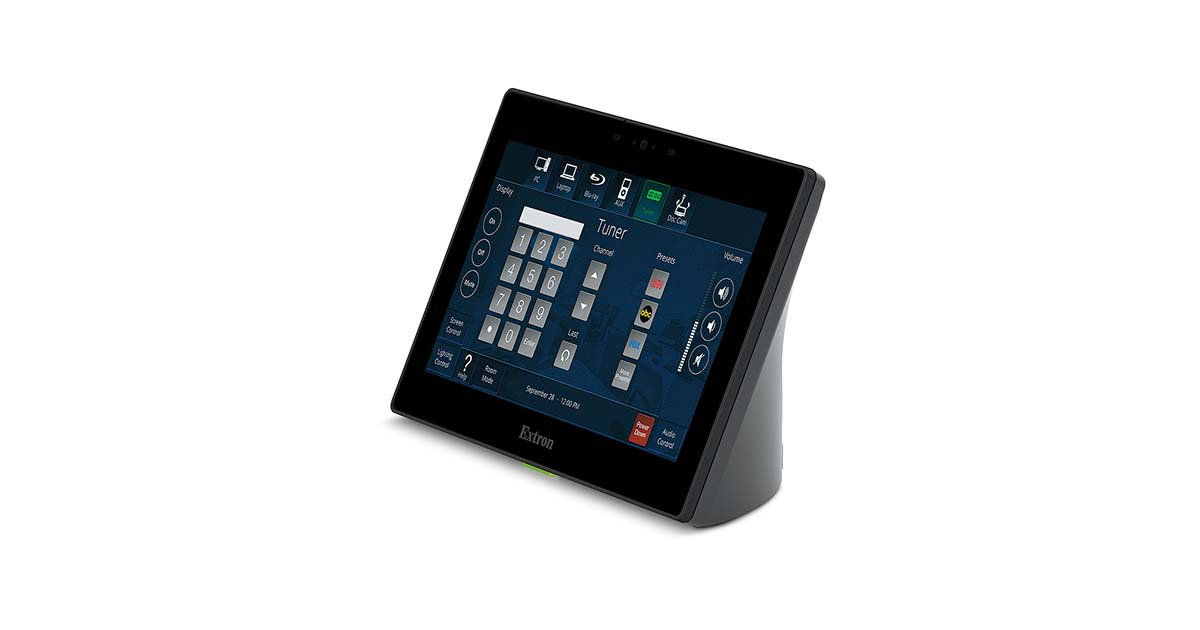

Extron TLP Pro 725T 7inch Tabletop
SPECIFICATIONS
DISPLAY
Screen type TFT Active matrix color LCD display
Size 7" (17.8 cm), measured diagonally
Resolution 1024x600
Aspect ratio Widescreen
Color depth 24 bit, 16.7 million colors
Contrast 700:1
MEMORY
SDRAM 2 GB
Flash 4 GB
COMMUNICATION — ETHERNET INTERFACE
Ethernet data rate 10/100/1000Base-T, half/full duplex with autodetect
Ethernet protocol DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
Software
Configuration software Global Configurator Plus and Professional, GUI Designer
Programming software Global Scripter
Control apps Extron Control, iGVE
Resource management software GlobalViewer Enterprise, iGVE
Utilities Toolbelt, Embedded web page
CONTROL — USB
Number/signal type 1 high-speed USB 2.0 device
USB standards USB 2.0, USB 1.1, USB 1.0 compatible
AUDIO OUTPUT
Speaker output 1 mono, 86 dB SPL, 0.1 watt, 0.1 m, half space
Playback format(s)
Container format WAV (Microsoft RIFF)
Encoding LPCM (uncompressed)
Audio channels mono or stereo
GENERAL
Power input requirements Power over Ethernet (PoE 802.3af, class 3)
Temperature/humidity Storage: -4 to +158 °F (-20 to +70 °C) /
5% to 90%, noncondensing
Operating: -4 to +158 °F (-20 to +70 °C) /
20% to 90%, noncondensing
Mounting Set on tabletop
Enclosure dimensions 4.78" H* x 7.12" W x 3.53" D
(12.15 cm H* x 18.09 cm W x 8.98 cm D)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick,FCC Class B, ICES, VCCI
Environmental Complies with the appropriate requirements of RoHS and
WEEE.
Warranty 3 years parts and labor; touchpanel display and overlay
components are covered for 1 year
NOTE: All nominal levels are at ±10%.
Model Version Description Part number
TLP Pro 725T Black - Tabletop 60-1562-02
TLP Pro 725T White - Tabletop 60-1562-03
